Precast Reinforced Concrete Piles

PKM has been producing high performance reinforced concrete piles for more than 40 years now. Our technical expertise in the field of pile manufacturing and design has made us the foremost brand in terms of quality and performance.

PKM standard precast reinforced concrete piles are designed and manufactured according to:

BS 80041986 - Foundation
BS 81101997 - Structural Use of Concrete
CP 1161969 - The Structural Use of Precast Concrete

PKM also manufacture RC piles to the following specifications:

JKR Design
MS 13142004
Customised Design(Special Design Piles)

We have a wealth of experience in this field due to the fact that PKM is specialised in precast RC piles since 1985. All our units are made with High Strength Concrete.

Specifications

Concrete

Concrete cube strength at 28 days shall be 50N/mm2, 60N/mm2 and 70N/mm2 depending on the client’s requirement.

Cement

MS 522 : Part 1 : 1989 - Specification for Ordinary Portland Cement.

Aggregate

MS 29 : 1995 - Coarse & fine aggregate from natural sources.

Reinforcement Bar

MS 146 : 2000 - Hot rolled steel bars for the reinforcement of concrete.

Hard Drawn Wire

MS 144 : 2001 - Cold reduced mild steel wire for the reinforcement of concrete.

Mild Steel Plates

BS 4360 : 1979 - End plate (grade 43A)

Admixture

MS 922 : 1984 - Specification for concrete admixtures.

Design Criteria

PKM piles are designed to resist normal handling and driving stresses and to support the required loading when installed.

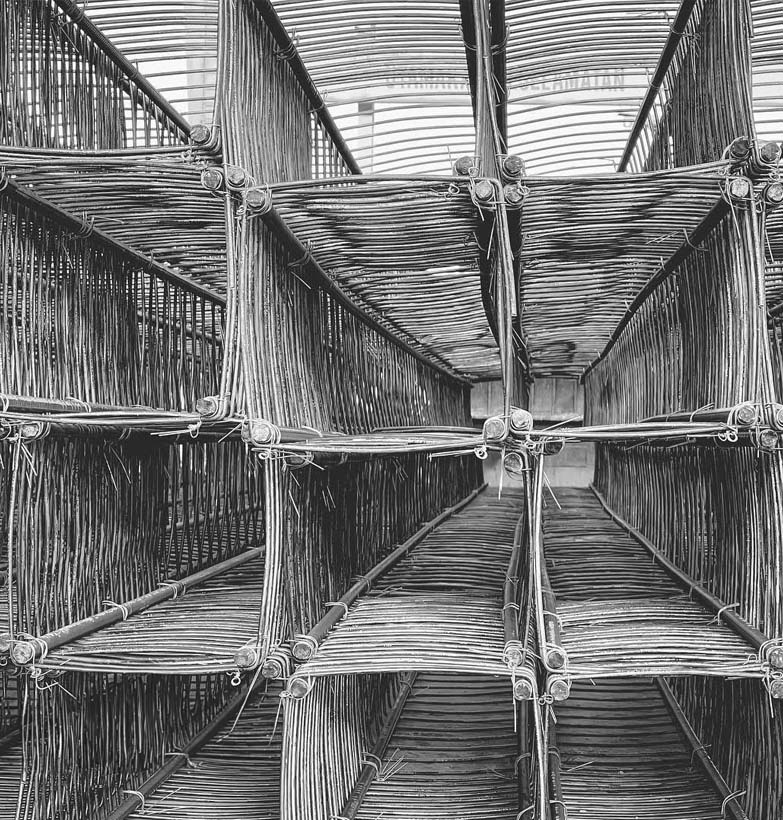

Pile Shoes

PKM piles are normally provided with flat ended M.S. plate or pointed shoe at the pile toe. However, client can specify various pile shoes to be provided in accordance with the individual driving / site soil conditions as follows:

Easy / Medium hard drivingFlat ended mild steel plate.
Very hard drivingMild steel plate pointed shoe.
For penetration into rock / limestoneK-Shoe or Oslo pointed shoe.

Lifting Points

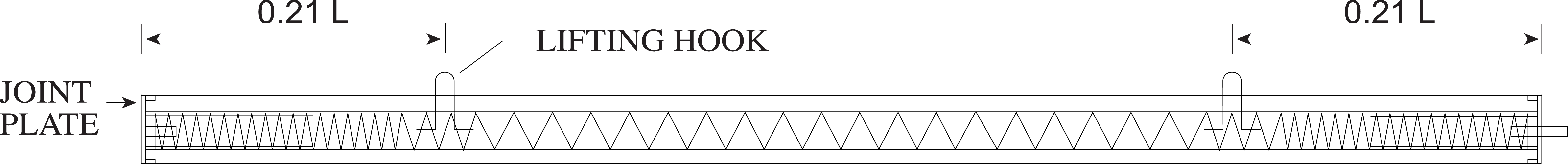

To ensure minimum lifting stress, 2 mild steel lifting hooks are incorporated in the pile at 0.21 times the pile length from each end.

PKM Standard Piles

PKM Standard Piles are designed to be used for high loading applications such as for high-rise buildings and even for bridges.

PKM Standard Piles have the following qualities and advantages:-

Up to Grade 70 concrete. Higher concrete grades available upon request.
Able to resist high axial loadings.
Enables huge savings in overall cost due to the reduced pilecap dimensions and reduced piling numbers as a result of using high performance concrete.
Very good durability due to the high concrete grade.
Time savings due to fewer pile points as a result of the high load-bearing capacity of the Standard Piles.

PKM Standard Piles

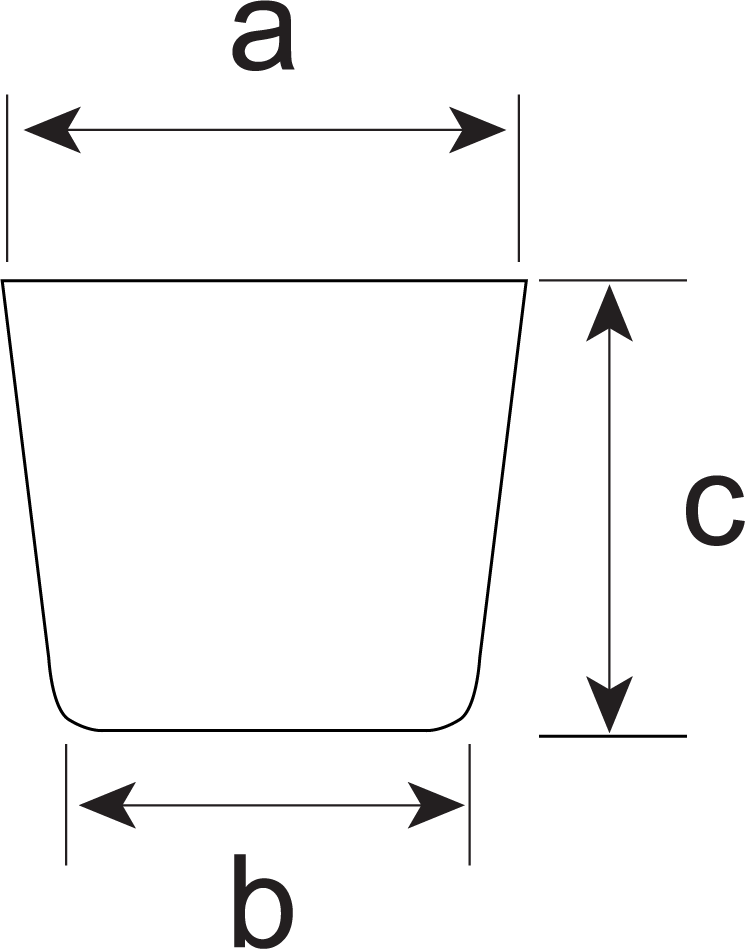

Nominal Pile Size	Dimension			Weight of Pile	***Main Reinforcement	**Joint Plate Thickness	*Pile Maximum Working Load			Pile Length
mm x mm	A mm	B mm	C mm	KG/m	No. X Dia.	mm	G50 tonne	G60 tonne	G70 tonne	m
150 x 150	155	145	150	54	4 T 10	4.5	36	NA	NA	3,6
175 x 175	180	170	175	74	4 T 10	6	47	NA	NA	3,6
200 x 200	205	195	200	96	4 T 12	8	62	73	NA	3,6,9
225 x 225	230	220	225	122	8 T 9	8	78	91	NA	3,6,9
250 x 250	255	245	250	150	8 T 10	8	96	113	130	3,6,9,12
275 x 275	280	270	275	182	4 T 16	8	117	137	158	3,6,9,12
300 x 300	305	295	300	216	8 T 12	9	138	162	187	3,6,9,12
325 x 325	330	320	325	254	8 T 12	9	159	188	217	3,6,9,12
350 x 350	355	345	350	294	4 T 20	12	188	221	255	3,6,9,12
375 x 375	380	370	375	338	8 T 16	12	219	257	295	3,6,9,12
400 x 400	405	395	400	384	8 T 16	12	245	289	332	3,6,9,12
450 x 450	455	445	450	486	4 T 25	12	309	364	419	3,6,9,12
500 x 500	505	495	500	600	8 T 20	15	383	451	519	3,6,9,12

* Axial capacity for a short strut.
** Joint plates are designed for compression loading only. Tensile forces may be accomodated upon request.
*** Alternative designs for specific loading purposes may be designed for upon request.
Note : Different pile lengths can be made upon request made in advance.

PKM Commercial Piles

Nominal Pile Size	Dimension			Weight of Pile	***Main Reinforcement	**Joint Plate Thickness	*Pile Maximum Working Load			Pile Length
mm x mm	A mm	B mm	C mm	KG/m	No. X Dia.	mm	G50 tonne	G60 tonne	G70 tonne	m
150 x 150	155	145	150	54	4 T 9	4	35	NA	NA	3,6
175 x 175	180	170	175	74	4 T 9	4.5	46	NA	NA	3,6
200 x 200	205	195	200	96	4 T 10	6	60	71	NA	3,6,9
225 x 225	230	220	225	122	4 T 12	6	77	90	NA	3,6,9
250 x 250	255	245	250	150	8 T 9	8	94	111	128	3,6,9,12
275 x 275	280	270	275	182	8 T 10	8	114	134	155	3,6,9,12
300 x 300	305	295	300	216	4 T 16	9	136	161	185	3,6,9,12
325 x 325	330	320	325	254	4 T 16	9	158	186	215	3,6,9,12
350 x 350	355	345	350	294	8 T 12	9	182	216	249	3,6,9,12
375 x 375	380	370	375	338	4 T 20	9	213	251	289	3,6,9,12
400 x 400	405	395	400	384	4 T 20	9	239	283	326	3,6,9,12
450 x 450	455	445	450	486	8 T 16	12	303	358	413	3,6,9,12
500 x 500	505	495	500	600	4 T 25	12	374	442	510	3,6,9,12

JKR Specifications RC Piles

Nominal Pile Size	Dimension			Weight of Pile	Main Reinforcement	Joint Plate Thickness	Ultimate Bending Moment Assuming Ideal Conditions	Pile Max Working Load (G50)
mm x mm	A mm	B mm	C mm	KG/m	No. X Dia.	mm	kNm	tonne
150 x 150	155	145	150	54	4 x 10	10	7.41	36
175 x 175	180	170	175	74	4 x 10	10	9.23	47
200 x 200	205	195	200	96	4 x 12	15	14.42	62
250 x 250	255	245	250	150	4 x 16	15	33.12	99
300 x 300	305	295	300	216	4 x 20	15	63.41	144
350 x 350	355	345	350	294	4 x 20	15	76.61	188
400 x 400	405	395	400	384	4 x 25	15	136.89	251

Maximum Load Capacity

In accordance to BS 8004, maximum axial load = 0.276 fcu ● Ac + fs ● As

fcu = Concrete characteristic strength at 28 days
Ac = Net concrete area
fs = Permissible compressive stress for longitudinal bars
= 0.55 fy but not greater than 175N/mm²
fy = Steel characteristic yield strength
As = Steel area of the longitudinal bars
