K-Shoe®

Perimeter Focused Type
Rock Shoe for Piles

Patent Abstract

A rock shoe of a pile wherein the perimeter focus design comprises a plurality of steel shafts and steel stiffener plates with multi tips or apexes located along the perimeter of the pile shoe provides further improved keying effect and thereby provides a better contact over a larger angle of unevenness and also serves to prevent the formation of a densified soil pyramid which may hinder the successful keying of the pile shoe.

Simply the best rock shoe for precast piles

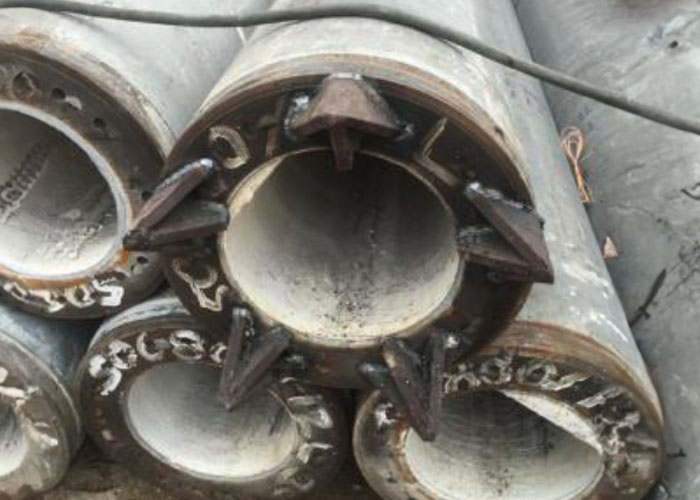

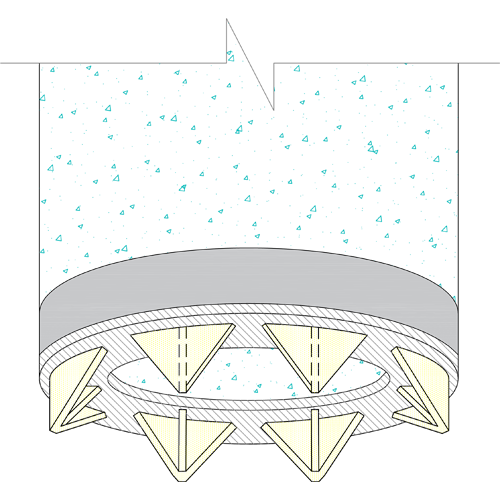

Rock Shoe for Spun Pile

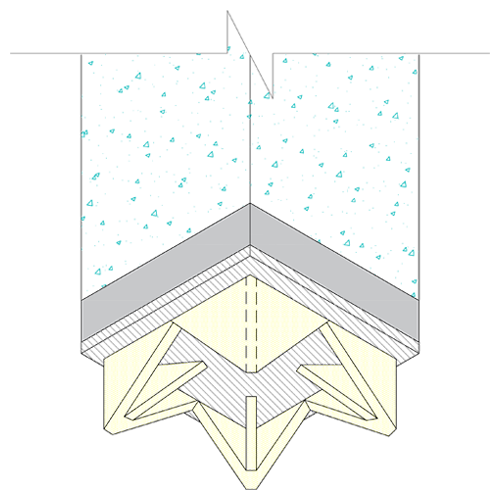

Rock Shoe for Square Pile

K-Shoe® Features

For Any Kind of Pile
  • Suitable for any kind of precast pile.
  • Weld the base of the K-Shoe onto the joint plates of any precast piles.
For Any Rock Type
  • Suitable for all types of rock (relatively soft limestone to relatively hard granite).
  • Successful keying of precast piles into any type of rock.
Uneven / Sloping Rock Strata
  • Successful piling even in challenging conditions.
  • In cases where the rock strata is highly uneven/sloping, such as locations with limestone or fractured granite, typical conventional rock shoes will be ineffective as their tip doesn’t effectively embed itself in the rock. The K-Shoe can key itself into the rock in any rock strata condition, which results in a lesser chance of pile toe slippage.
Other Features...
  • Protects the pile head.
  • Easy to install on the pile head (requires less skills).
  • Low unit weight.
  • Proven successful through use.
  • K-Shoe geometry improves punching ability.
  • One of the most economical rock shoe for piles.
  • Unique shape of the K-Shoe enables it to embed itself into the direction of the rock strata.

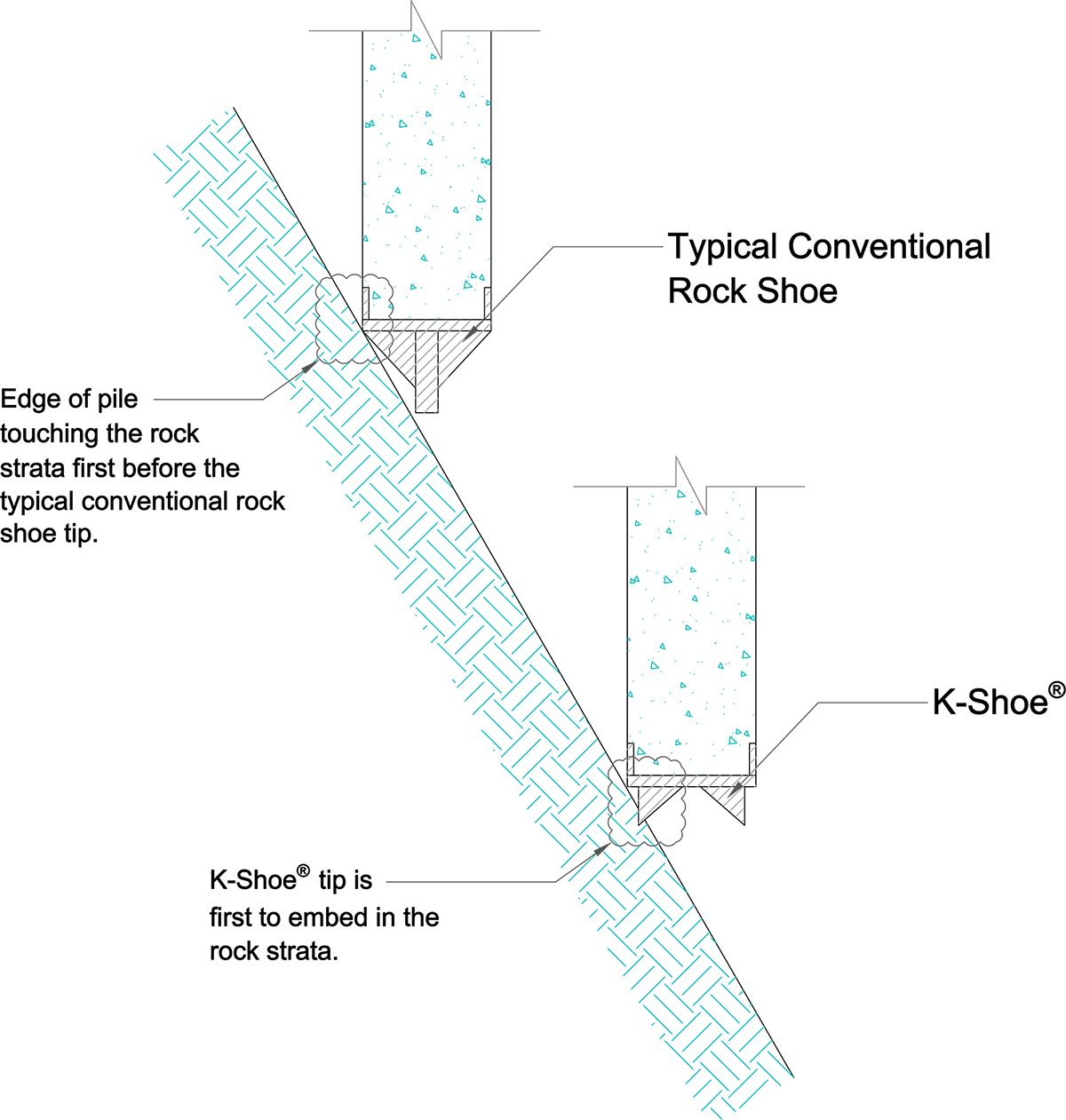

Typical Conventional Rock Shoe
& K-Shoe in uneven rock strata

K-Shoe® Specifications

For the K-Shoe® system to be fully efficient, please follow the specifications as shown below for spun piles and square piles.

Dimension
K-Shoe®
Type		 K-Shoe®
Height & Base
(H & B)		 K-Shoe®
Base Edge to Edge
(E)		 Standard K-Shoe®
Thickness for Soft to Medium Rock Strata such as Limestone
(T)		 K-Shoe® Pro
Thickness for Hard Rock Strata such as Granite
(T)
Small K (SK) 75mm 106mm 2 x 12mm 3 x 12mm
Large K (LK) 100mm 141mm 2 x 15mm 3 x 15mm
Extra Large K (XLK) 125mm 176mm 2 x 15mm 3 x 15mm
For Spun Piles
(All Brands / All Classes)
Pile Size Type of K-Shoe® Numbers of K-Shoe®
250mm dia. SK 5
300mm dia. SK 5
350mm dia. SK 6
400mm dia. LK 5
450mm dia. LK 5
500mm dia. LK 6
600mm dia. LK 7
700mm dia. LK 8
800mm dia. XLK 9
900mm dia. XLK 10
1000mm dia. XLK 11
1200mm dia. XLK 14

K-Shoe units are to be placed equally apart along the spun pile perimeter.

For Square Piles
(All Brands / All Designs)
Pile Size Type of K-Shoe® Numbers of K-Shoe®
150x150mm sq. SK 4
175x175mm sq. SK 4
200x200mm sq. SK 4
225x225mm sq. SK 4
250x250mm sq. LK 4
275x275mm sq. LK 4
300x300mm sq. LK 4
325x325mm sq. LK 4
350x350mm sq. LK 4
375x375mm sq. LK 4
400x400mm sq. XLK 4
450x450mm sq. XLK 8
500x500mm sq. XLK 8

K-Shoe units are to be placed 30mm from the edge of the pile.
For 150mm and 175mm sq. piles, the K-Shoe units are to be flush along the pile's edge.
(Subject to change without prior notification)

Rock Shoe Standard

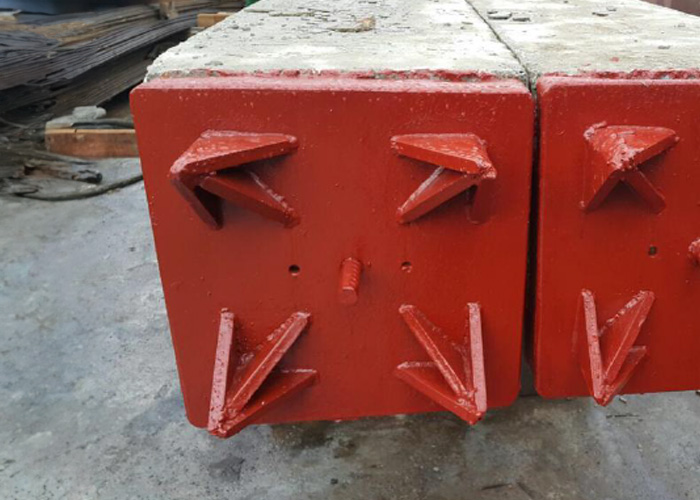

Standard K-Shoe®

Rock Shoe Pro

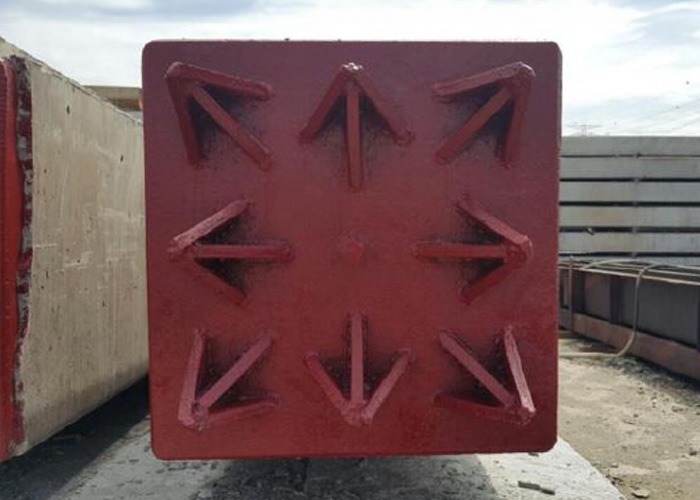

K-Shoe® Pro

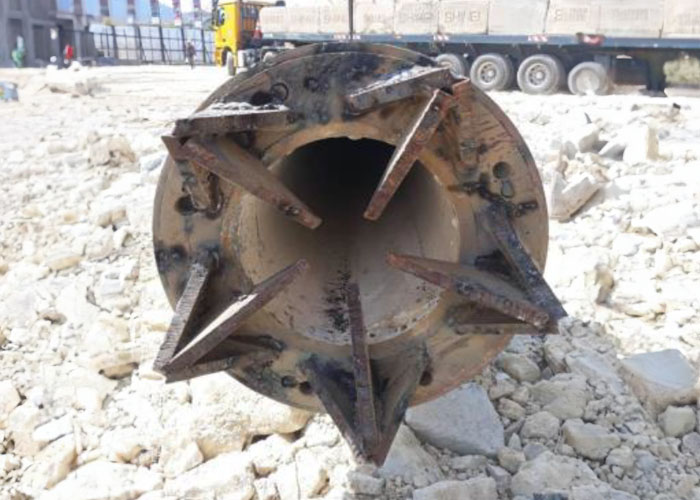

Rock Shoe for Spun Pile
